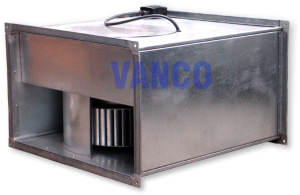

Inline Centrifugal Duct Fan – VCI Series
The VCI series range of centrifugal low pressure fans are specifically designed to be installed within rectangular duct ventilation systems or where the space for installation is limited. The range comprises of eight nominal model size. The range is available with single phase 220V 50Hz motors and three phase 380V 50Hz motors in 4,6,and 8 pole speeds. Air volume performance ranges from 1.090 up to 10.850 m3/h. All models suitable for mounting in any orientation and operation within ambient air temperatures between -45°C up to +70°C.
The VCI series range are suitable for many general ventilation applications where the fan is required to be installed within a rectangular duct ventilation system or where the space for installation is limited. Due to the configuration of the design, the dimension of the fan section would be no greater than that of the proposed nominal ducting.
Typical installations would include:
- commercial offices air extract/supply,
- car park supply air
- restaurant,
- and installations where the mounting space is limited or confined.
Product category : Inline Centrifugal Duct
