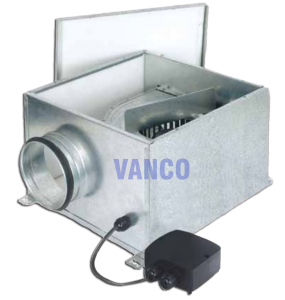

•  The VFIB Series Low profile fans manufactured from heavy gauge galvanised steel sheet and internally lined with melamine foam flame retardant acoustic insulation (M1). Supplied with a removable cover closing hermetically.
•  All models incorporate single phase directdrive forward curved centrifugal fan and IP54 remote terminal box.
•  Available, depending upon the model, with single phase motors in 2 or 4 poles. Motors External rotor motors, IP54, class B, with ball bearings and thermal protection.

The fan casing are manufactured from heavy gauge galvanized sheet steel. All models incorporate an inspection cover that can be removed to access the motor / impeller assembly without having to remove the complete casing from the ducting.

All models incorporate direct-drive low pressure forward curved centrifugal impellers. The impeller is factory matched to the motor and the complete assembly is dynamically balanced 1940 standards.







Product category : Centrifufal Cabinet Fan
